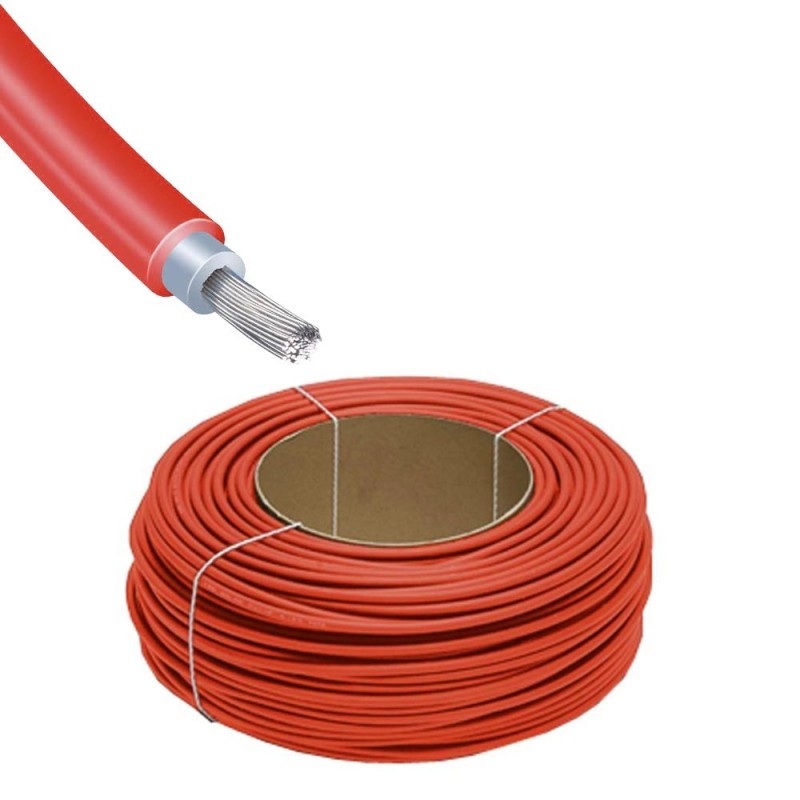

KBE EN50618 6mmq 100m Red Photovoltaic Cable

KBE EN50618 Red Photovoltaic Cable 6mmq 100m

Photovoltaic cable with E-Cu class 5 IEC 60228 tin-plated copper flexible conductor for cabling of photovoltaic systems. Resistant to mechanical and climatic stresses. Solar cable for installation in dry and humid rooms, under ground and also outdoors under direct sunlight. Greater water resistance and UV stability.
Equipped with three certificates H1Z2Z2-K/EN 50618, CEI 131 / CEI 62930, TÜV 2 PfG 1169/10.19. Fire class Dca according to BauPVO/flammability class Dca CPR.
Specific for Photovoltaic systems with nominal voltage Uo/U600/100V in alternating current and not over 1800V in direct current, flame retardant, halogen free, designed to last at least 25 years.

Technical specifications:
- Continuous operating temperature: - 40 °/+ 90 °C;
- Maximum operating temperature: + 120 °C;
- Minimum ambient temperature for installation: -20 °C;
- Minimum allowable ambient temperature: - 40 °C;
- Peak temperature: + 250 °C;
- Wire life at 60 °C: 25 years;
- Rated Voltage U0/U: 1500 VDC;
- Max permissible operating voltage: 1800 VDC max;
- Colour: Red;
- Diameter: 6 mmq;
- Coil length: 100 meters.
