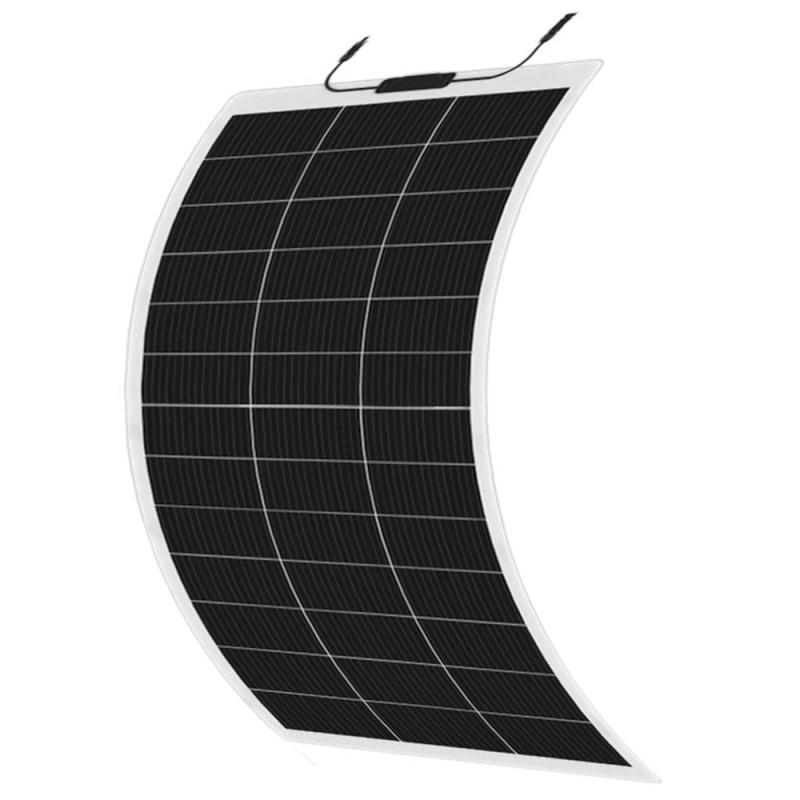

200W 12V CPC Flexible Solar Panel 157x69cm

200W 12V CPC Flexible Monocrystalline Solar Panel

High-performance 200W CPC flexible solar module with microcrystalline cells. Manufactured with high performance monocrystalline solar cells. Flexible up to a curvature of 30%. About 5 times lighter than conventional modules. High quality CPC surface. The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material. Our flexible module adopts maximum conversion up to ≥22.5% efficiency and an internal blocking diode that prevents reverse current consumption at night.
It can be mounted on a roof of a boat, yacht, camping, caravans, tent or any other uneven surface. Extremely thin and light: weighs only 4.2 kg and is just 2 mm thick.

Technical data:
- Model: SZ-200-MC;
- Power: 200W;
- Cell type: Monocrystalline 210*105–14*3;
- Module performance: ≥23.5 %;
- Maximum Power Voltage (Vmp): 24.36 V;
- Maximum Power Current (Imp): 8.21 A;
- Open-circuit Voltage (Voc): 28.56 V;
- Short-circuit Current (Isc): 8.71 A;
- Maximum system voltage: 200 V;
- Output tolerance: 0±3 %;
- Cable: 900 mm/2.5 mmq;

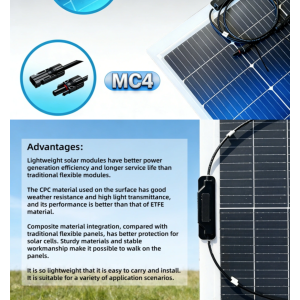

- Connector type: MC4/MC4 compatible;

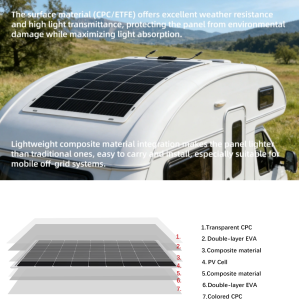

- Model structure: CPC, EVA, backsheet;
- Junction box classified: ≥IP67;
- Working temperature: -20°C ~ +65°C;
- Dimensions: 1570x690x2 mm;
- Weight: 4.2 kg.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
