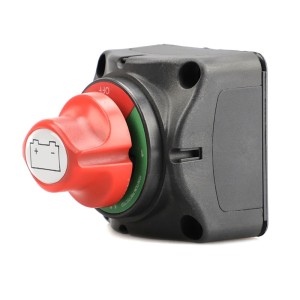

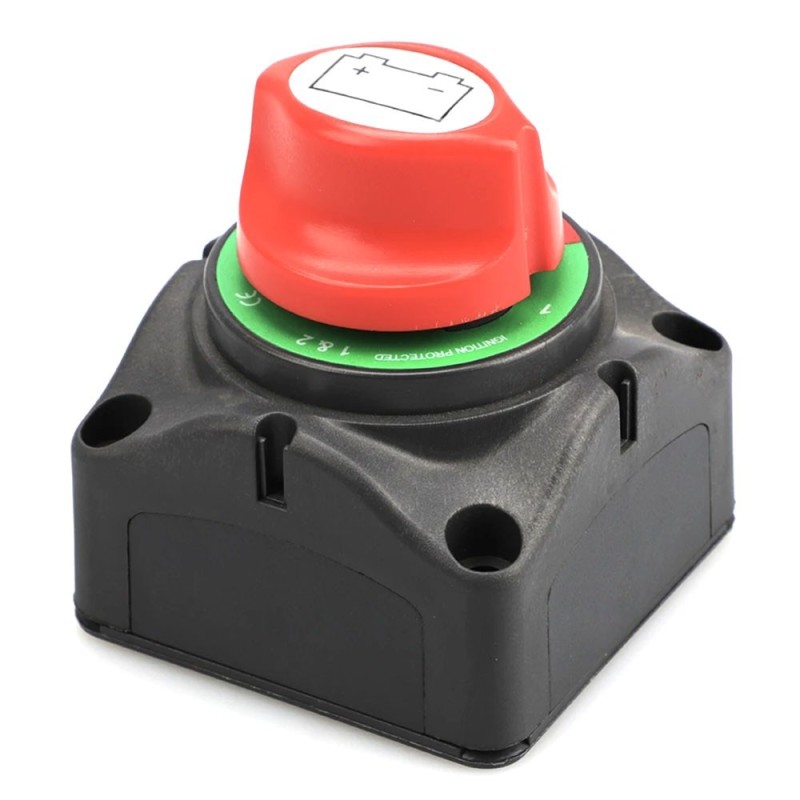

Ultimatron A701-S Battery Switch 200A 12-48V Double battery

Ultimatron A701-S Battery Switch 200A 12-48V Double battery

The battery switch has a rated continuous current and is compatible with battery systems up to 48 V. It has a particularly ergonomic and aesthetic knob design for easy use.

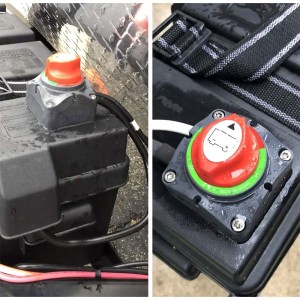

The Battery Disconnector can be used to isolate a battery from DC loads and/or DC charging sources. It is used to conserve battery charge in case the system is unattended, for system maintenance or in case of emergency.
It can also be used to connect the service battery and the starter battery in parallel, in order to supplement a starter battery or a discharged service battery in an emergency.

Technical features:
- Model. A701-S;
- Continuous power: 200 A;
- Voltage: 12-48V;
- Position: 1-2-both-off;

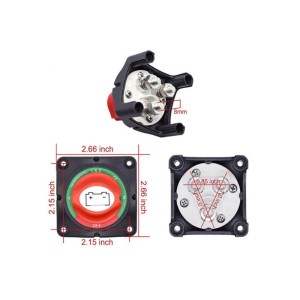

- Dimensions: 68x68x75 mm;
- Weight: 0.3kg.
