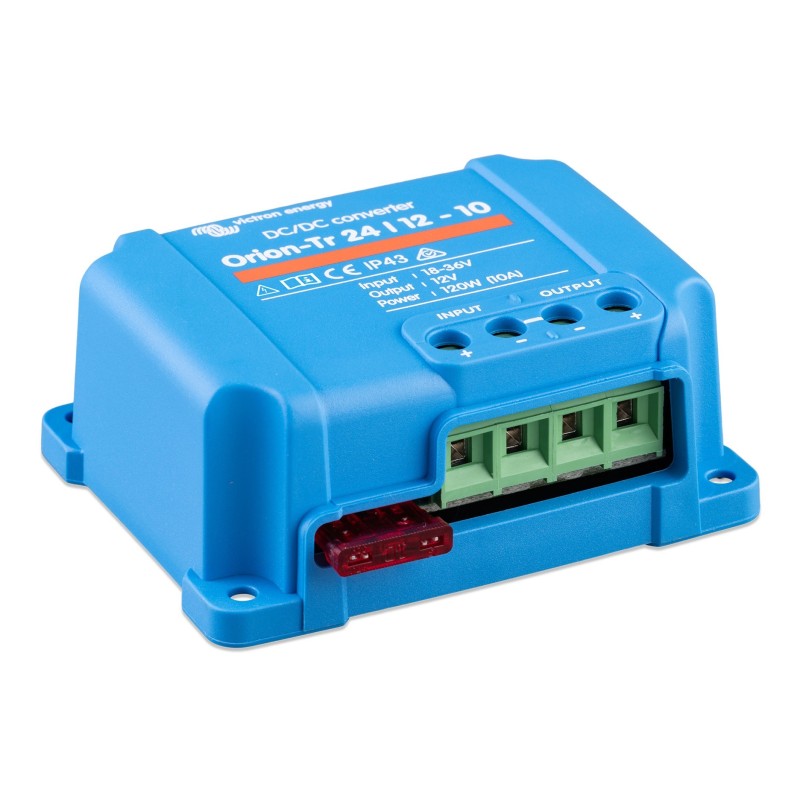

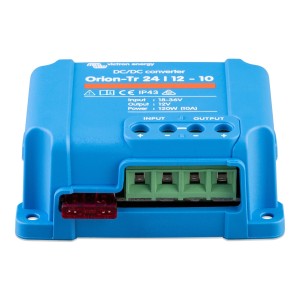

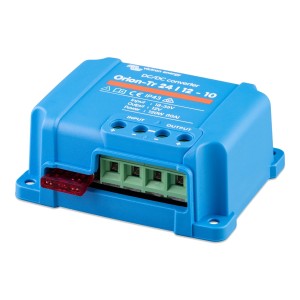

Victron Orion-Tr 24|12-10 10A 120W DC-DC Converters

Victron Energy Orion-Tr 24|12-10 DC-DC Converters 10A 120W Non-isolated

The Victron Orion 24/12-10 120W DC-DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers. The 24/12 converts 24V DC into 12V DC with constant 10A (120W). Moreover it compensates possible conductor losses as well as fluctuations of the battery voltage.
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.

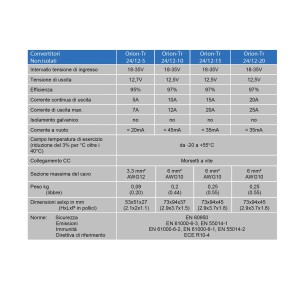

Features:
Model: Orion-Tr 24|12-10 non-isolated;
Input voltage range: 18-35 V;
Efficiency: 97 %;
Nominal output voltage: 12.5 V;
Continuous output current: 10 A;
Maximum output current: 12 A;
Galvanic isolation: no;
Off-load current: < 45 mA;
Operating temperature range (3% derating per °C above 40 °C): -20 to +55 ºC;
DC connection: Screw terminals;
Maximum cable cross-section: 6 mm² (AWG10);
Weight: 0.20 kg (0.44 lb);
Dimensions HxWxD: 73x94x37 mm (2.9x3.7x1.5 inches);
Protection category: IP43 (electronic components), IP22 (connection area);
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4.
