150W 12V CPC Flexible Solar Panel 128x60cm 1294x610x2mm

150W 12V CPC Flexible Monocrystalline Solar Panel 1294x610x2mm

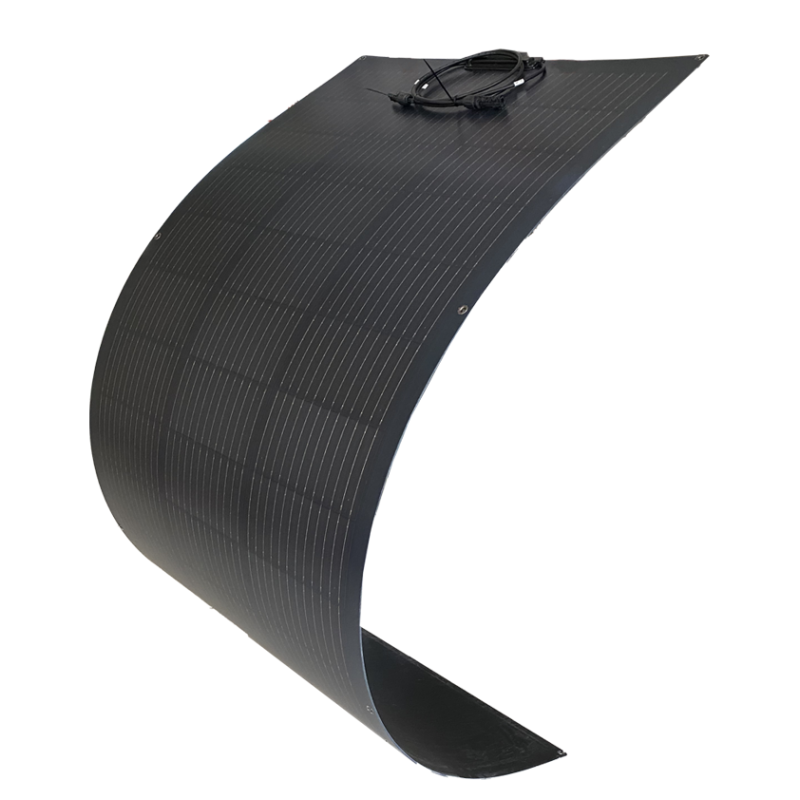

High-performance 150W CPC flexible solar module with microcrystalline cells. Manufactured with high performance monocrystalline solar cells. Flexible up to a curvature of 30%. About 5 times lighter than conventional modules. High quality CPC surface. The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material. Our flexible module adopts maximum conversion up to ≥22.5% efficiency and an internal blocking diode that prevents reverse current consumption at night.

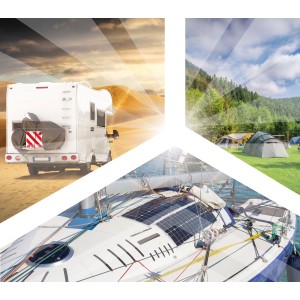

It can be mounted on a roof of a boat, yacht, camping, caravans, tent or any other uneven surface. Extremely thin and light: weighs only 3.1 kg and is just 2 mm thick.

Technical data:
- Model: SZ-150-MC;
- Power: 150W;
- Cell type: Monocrystalline 182x91-13x3;
- Module performance: ≥23.5 %;
- Maximum Power Voltage (Vmp): 22.62 V;
- Maximum Power Current (Imp): 6.64 A;
- Open-circuit Voltage (Voc): 26.52 V;
- Short-circuit Current (Isc): 7.03 A;
- Maximum system voltage: 200 V;
- Output tolerance: 0±3 %;
- Cable: 900 mm/2.5 mmq;

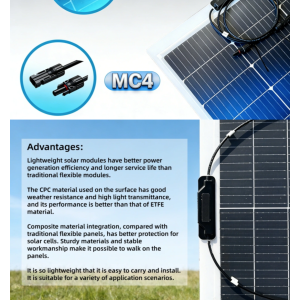

- Connector type: MC4/MC4 compatible;

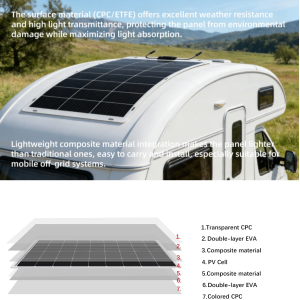

- Model structure: CPC, EVA, backsheet;
- Junction box classified: ≥IP67;
- Working temperature: -20°C ~ +65°C;
- Dimensions: 1294x610x2mm;
- Weight: 3.1 kg.
