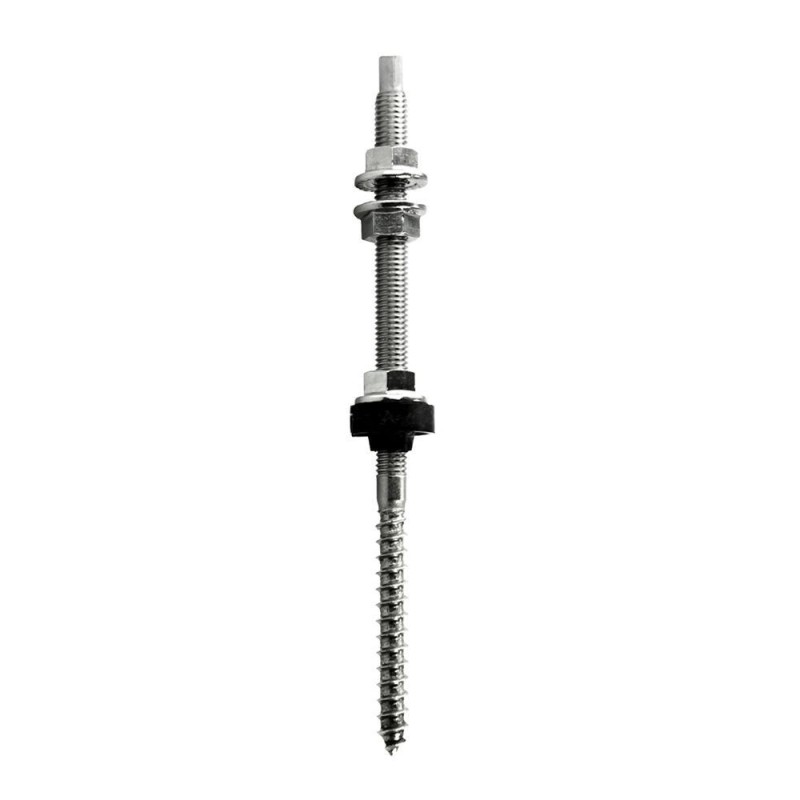

Stainless steel A2 self-tapping screw M10X200 for photovoltaic structures
M10X200 self-tapping screw in A2 stainless steel for photovoltaic structures. M10X200 double-threaded stud bolts Art.9215 self-tapping in A2 stainless steel, pre-assembled, adjustable in height, for solar photovoltaic fixing on building roofs.
Description
M10 x 200mm high quality stainless steel stud bolts, suitable for mounting solar PV systems.
Height-adjustable, with SW7 hexagon drive, completely pre-assembled and with weather- and UV-resistant EPDM seal and locking nuts.

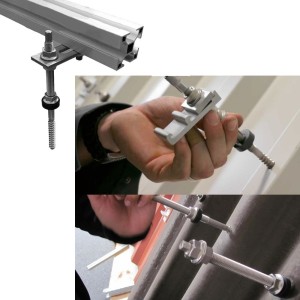

To be fixed on the roof to mount the aluminum guides on which the solar panels/photovoltaic systems are fixed.
For fastening on sheet or corrugated roofs as well as for wall mounting with rear ventilation.
Dimensions: 10x200 mm.
Material: A2 stainless steel art. 9211, assembled with 3 DIN 934 nuts + 3 DIN 125 washers + 1 EPDM gasket art. 9218.
Product Details
44505000
48 Items
Specific References
- EAN13
- 8025223444679
- MPN
- 44505000
M10X200 self-tapping screw in A2 stainless steel for photovoltaic structures. M10X200 double-threaded stud bolts Art.9215 self-tapping in A2 stainless steel, pre-assembled, adjustable in height, for solar photovoltaic fixing on building roofs.
